£3,741.00Original price was: £3,741.00.£3,741.00Current price is: £3,741.00.
Description

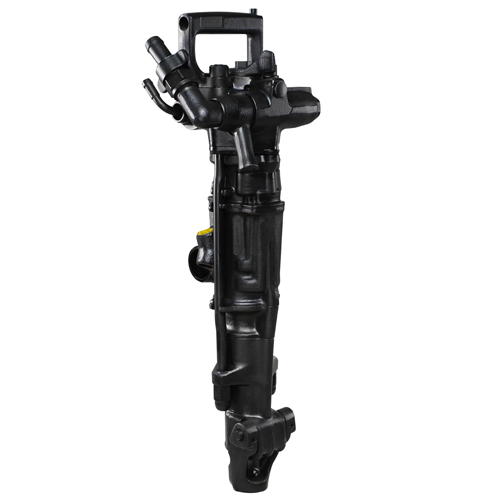

Atlas Copco water flushed, pusher leg mounted rock drills are designed for driving drifts and tunnels with a small cross section. These well-proven rock drills are recognized for their high performance and reliability. They are intended for use for hole diameter range of 27 to 41 mm (1-1 5/8 in)with Hex 22 (7/8″) rotation shank as a standard. When used with Atlas Copco tapered button bits, penetration rate will improve some 25-50% compared to conventional integral steels and have three to five times longer service life. The BBC 34 offers exceptional penetration rates in medium to hard rock, thanks to its long stroke and high impact energy.
Technical Specifications
Rock drill type: Underground rock drill
Rock drill version: Pusher leg rock drill
Weight: 33.5 kg
Length: 775 mm
Air consumption: 88 l/s
Impact Rate: 2280 blows/min
Piston diameter: 80 mm
Stroke length: 70 mm
Largest reaming diameter: 76 mm
Hole diameter: 27 – 41 mm
Vibration level 3 axes (ISO 5349-2)20.4 m/s2
Sound power level guaranteed, Lw (ISO 15744)127 dB(A)
Sound pressure level (ISO 15744) Lp, r=1m116 dB(A)
Shank Size (mm)22×108
Shank Size (inch)7/8×4 1/4

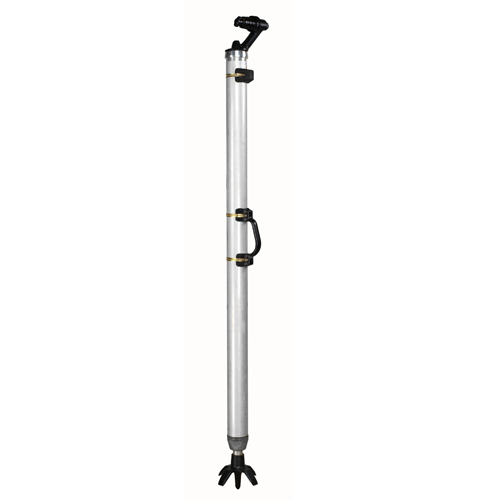

Suitable pusher legs – SEE RELATED ACCESSORIES BELOW
